1:16 Floor Standing Fiber Optic Splitting Distribution Box

Name: 116 Floor Standing Fiber Optic Splitting Distribution Box
Brand: Huajing
Price: 10.73 USD

Quality 1:16 Floor Standing Fiber Optic Splitting Distribution Box for sale

Delivery Time : 1-4weeks

Model Number : GP(06)2 (splitting type)

Material : High-strength engineering plastics

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Installation : on the ground

Place of Origin : China, Chengdu

Size : 346 *298 *681 mm

Price : 10.73-16.88

weight : 7.4kg

Brand Name : Huajing

Model. : GP(06)2 (splitting type)

MOQ : 100

Max splitting : 1:16

Contact Now

Application:

The box is suitable for the protection of optical cable and optical communication equipment connection. Through the pigtail spliced with the incoming cable inside the box, the signal is led lead out directly to realize the wiring function. It is suitable for floor installation outdoors.

Features:

Provide protection for optical cable distribution, which is waterproof and dustproof;
Independent optical fiber l splicing area, adapter connection area and cable wiring parking area, easy to operate and maintain;
The box body is upper and lower structure. After opened, it can be operated on both sides of the front and back without shielding.
Internal metal parts are electrostatic sprayed with uniform color and elegant appearance.

Indexes:

Product size (mm) : 346 (length) ×297 (width) ×681 (height)
Max capacity: 144 core (single fiber)
Weight: 7.4 kg
Curvature radius of fiber: ≥40mm
Additional loss of ice tray: ≤0.01dB
The distance of installation hole: 260mm

Technical Specifications

Parameter
Model.	GP(06)2 (splitting type)
Weight (Kg)	7.4
Cable Diameter(mm)	Φ6~Φ12
Max splitting	1:16
Core Capacity	24 (single core)

1:16 Floor Standing Fiber Optic Splitting Distribution Box

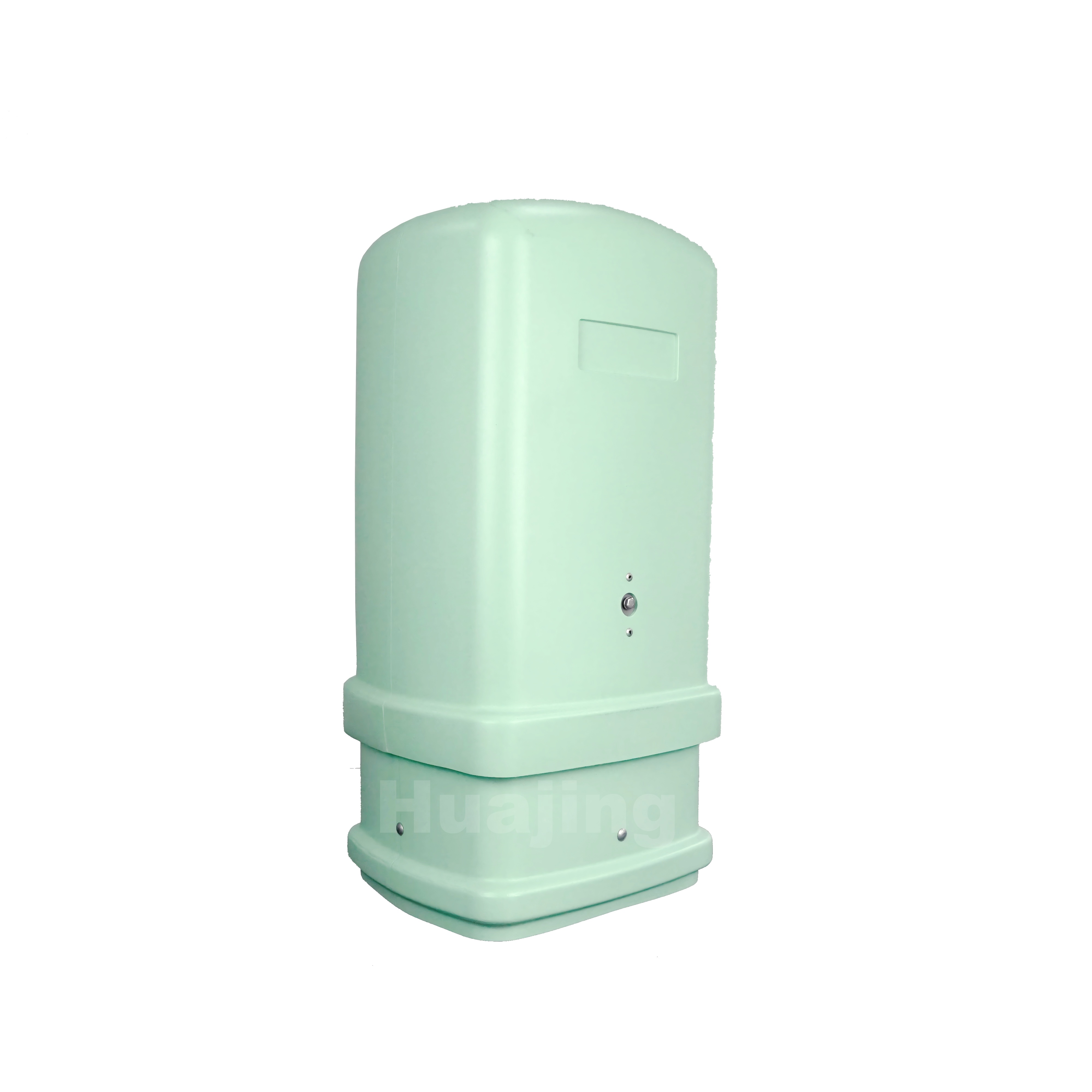

1:16 Floor Standing Fiber Optic Splitting Distribution Box Images
